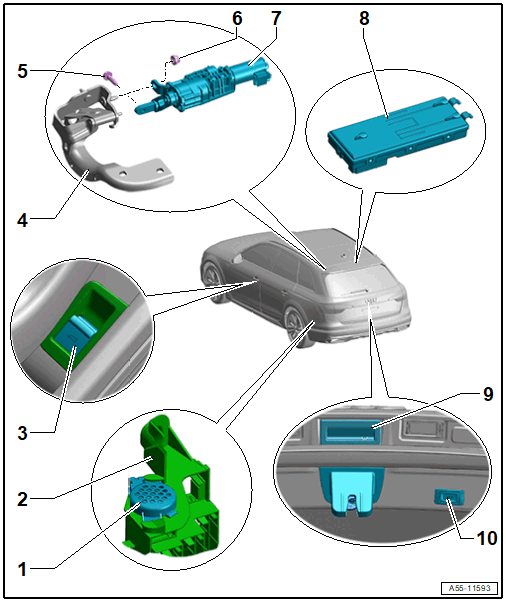

Overview - Electric Rear Lid Release, A4 AVANT
- Rear Lid Warning Buzzer -H32-
- Removing and Installing. Refer to Rear Lid Warning Buzzer -H32-, REMOVING AND INSTALLING .
- Relay and Fuse Panel 2 -SR2-
- On the left side of the luggage compartment
- Rear Lid Remote Release Button -E233-
- Removing and Installing. Refer to Rear Lid Remote Release Button -E233-, REMOVING AND INSTALLING .
- Hinge
- Removing and Installing. Refer to HINGES, REMOVING AND INSTALLING, A4 AVANT .
- Bolt
- 20 Nm + 90°
- Replace after removing.
- Nut
- 30 Nm
- Rear Lid Motor
- On the left: Rear Lid Motor 1 -V444- ; on the right: Rear Lid Motor 2 -V445-
- Removing and Installing. Refer to REAR LID MOTOR 1 AND 2 -V444- / -V445-, REMOVING AND INSTALLING, A4 AVANT .
- Rear Lid Control Module -J605-
- Removing and Installing. Refer to Rear Lid Control Module -J605-, REMOVING AND INSTALLING, A4 AVANT .
- Release Button In Rear Lid Handle -E234-
- Removing and installing. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN LUGGAGE COMPARTMENT .
- Rear Lid Lock Button in Luggage Compartment -E406-
- Depending on vehicle equipment with Locking Mechanism Button in the Rear Lid -E806-.
- Removing and installing. Refer to Rear Lid Lock Button in Luggage Compartment -E406-/-E806-, REMOVING AND INSTALLING .
