Overview - Electric Rear Lid Release, A5 SPORTBACK

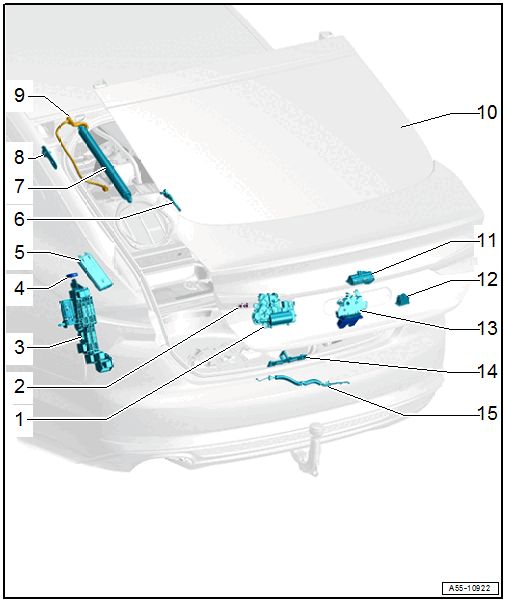

Fig 1: Exploded View Of Power Rear Lid Opener

Courtesy of AUDI OF AMERICA, LLC

1. Rear Lid Closing Assist Motor -V382-
   • Removing and Installing. Refer to Rear Lid Closing Assist Motor -V382-, REMOVING AND INSTALLING .
2. Locking Element
   • For the closing assist
3. Relay and Fuse Panel 2 -SR2-
4. Rear Lid Warning Buzzer -H32-
   • Removing and Installing. Refer to Rear Lid Warning Buzzer -H32-, REMOVING AND INSTALLING .
5. Rear Lid Control Module -J605-
   • Removing and Installing. Refer to Rear Lid Control Module -J605-, REMOVING AND INSTALLING, A5 SPORTBACK .
6. Mount
   • With ball pin
7. Rear Lid Motor
   • Left side: Rear Lid Motor 1 -V444- with Sensor in Rear Lid Motor 1 -G745- ; right side: Rear Lid Motor 2 -V445- with Sensor in Rear Lid Motor 2 -G746-
   • Removing and Installing. Refer to REAR LID MOTOR 1 AND 2 -V444- / -V445-, REMOVING AND INSTALLING, A5 SPORTBACK .
8. Mount
   • With ball pin
9. Grommet
10. Rear Lid
11. Release Button In Rear Lid Handle -E234-
    • Component Location Overview. Refer to Release Button in Rear Lid Handle -E234-, REMOVING AND INSTALLING
12. Rear Lid Lock Button in Luggage Compartment -E406-
    • Depending on vehicle equipment with Locking Mechanism Button in the Rear Lid -E806-.
    • Removing and installing. Refer to Rear Lid Lock Button in Luggage Compartment -E406-/-E806-, REMOVING AND INSTALLING .
13. Latch
    • Removing and Installing. Refer to LATCH, REMOVING AND INSTALLING .
14. Striker
    • Overview. Refer to OVERVIEW - REAR LID .
15. Closing Assist Release Cable
    • Removing and Installing. Refer to CLOSING ASSIST RELEASE CABLE, REMOVING AND INSTALLING .
