Adjustment Dimension, A4 AVANT

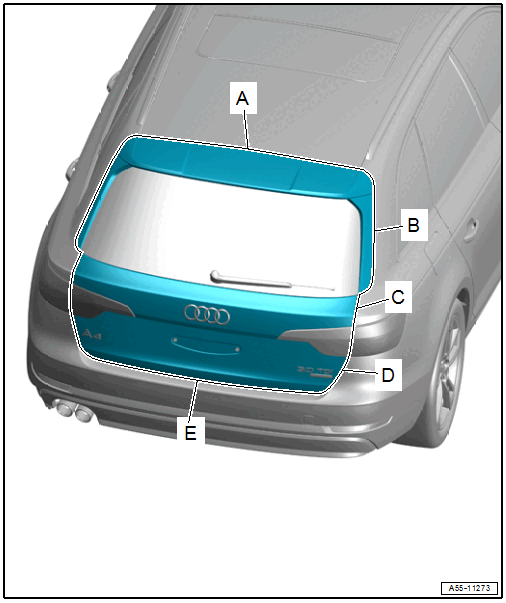

Fig 1: Adjustment Dimension, A4 Avant

GWWA55-11273

Courtesy of AUDI OF AMERICA, LLC

A - Rear Lid to Roof
- Gap dimension = 4.0 mm
B - Rear Lid to Top of Side Panel
- Gap dimension = 4.0 mm
C - Rear Lid to Side Panel Bottom
- Gap dimension = 3.5 mm
D - Rear Lid to Side Panel Bottom
- Gap dimension = 3.5 mm
E - Rear Lid to Rear Lid End
- Gap dimension = 5.0 mm
