Hinge, Removing And Installing, A5 SPORTBACK: Removing

-- Remove the rear lid. Refer to REAR LID, REMOVING AND INSTALLING, A5 SPORTBACK .

-- Remove the headliner and place in the vehicle interior. Refer to HEADLINER, REMOVING AND INSTALLING .

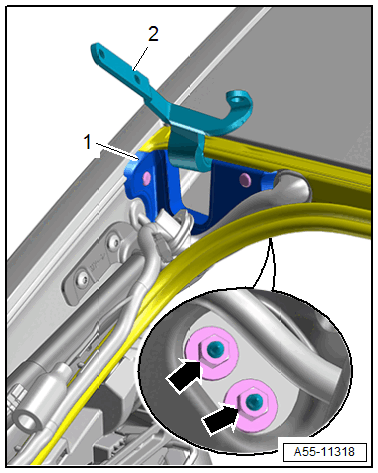

-- Remove the side roof frame cover -1-. Refer to ROOF FRAME COVER, REMOVING AND INSTALLING, A5 SPORTBACK .

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -arrows-.

-- Remove the hinge -2-.
