Rear Lid Seal, Removing And Installing, A4 AVANT From Product Improvement: Removing

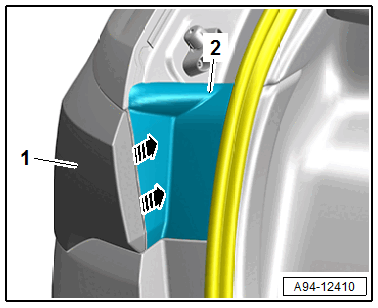

-- To release the catches on the cover -2-, push the cover by hand on the edge forward in direction of -arrows-.

GWWA94-12410Courtesy of AUDI OF AMERICA, LLC

-- Remove the cover from the tail lamp -1-.

-- Remove the rear lid seal from the body flange.
