Rear Lid Seal, Removing And Installing, A4 AVANT From Product Improvement: Installing

Install in reverse order of removal and note the following:

-- Position the rear lid seal on the body flange.

Courtesy of AUDI OF AMERICA, LLC

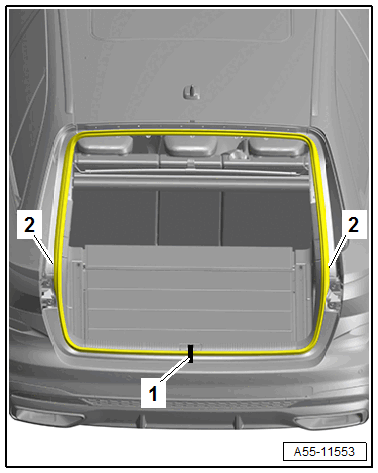

• The butt joint -1- of the rear lid seal must be positioned centered to the striker.
• The cover lips -2- must be aligned evenly with the tail lamps.

-- Press on the entire length of the rear lid seal.
