Adjusting Buffer Stop, Removing And Installing, A4 Sedan And A5 Coupe: Removing

-- Remove the slider -1- from the stop -2- -arrow-.

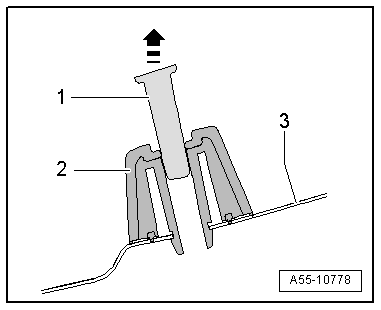

Fig 1: Removing Side Stop Buffer
GWWA55-10778Courtesy of AUDI OF AMERICA, LLC

-- Remove the stop from the side panel/rear lid -3-.
