Closing Assist Release Cable, Removing And Installing: Removing

-- Remove the rear lid lower trim panel and the latch cover. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .

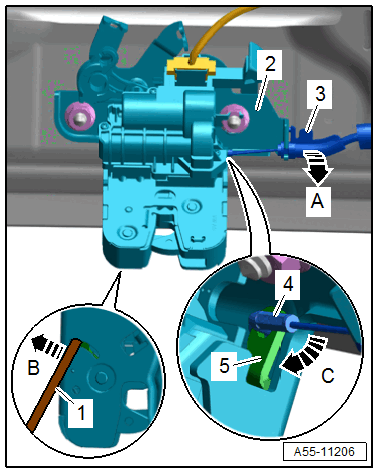

-- Turn the operating cable 90° in the direction of -arrow A- at the lever -3- and remove it from the cable bracket for the latch -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Using a screwdriver -1-, secure the operating lever -5- on the opposite side in direction of -arrow B-.

-- Disengage the release cable nipple -4- from the release lever in direction of -arrow C- and free up the release cable.

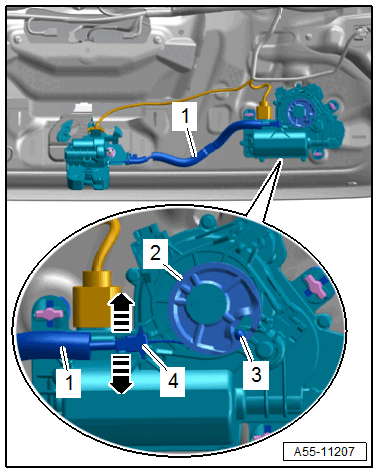

-- Disengage the cable bracket -4- on the Rear Lid Closing Assist Motor - V382- to do so release the catches in direction of -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the release cable nipple -3- at the actuator -2-.

-- Remove the release cable -1-.
