Rear Lid Motor 1 And 2 -V444- / -V445-, Removing And Installing, A4 AVANT: Removing

-- Remove the rear lid trim panel. Refer to REAR LID UPPER TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the D-pillar trim panel. Refer to D-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

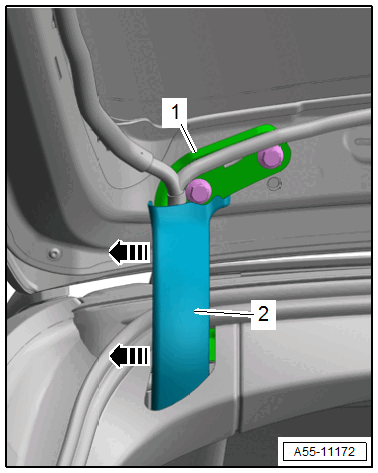

-- Release the catches in direction of -arrows- and remove the cover -2- from the hinge -1-.

Courtesy of AUDI OF AMERICA, LLC

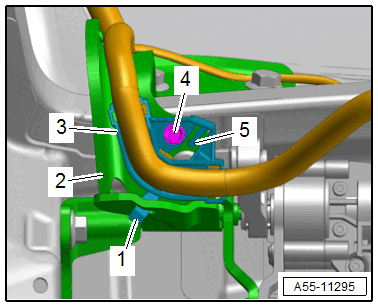

-- Push the expanding pin -4- through.

Courtesy of AUDI OF AMERICA, LLC

-- Release the retainers -1 and 5- and remove the wiring harness bracket -3- from the mount on the hinge -2-.

-- Disconnect the connector -5-.

Courtesy of AUDI OF AMERICA, LLC

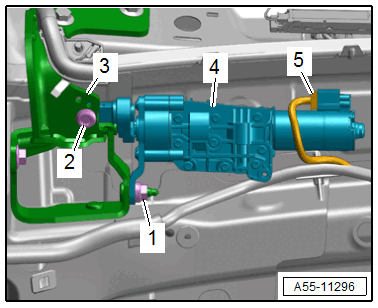

-- Remove the bolt -2- and the nut -1-.

-- Remove the rear lid motor -4- from the mount on the hinge -3-.
