Rear Lid Control Module -J605-, REMOVING AND INSTALLING, A4 AVANT: Removing

-- Remove the roof end strip. Refer to ROOF END STRIP, REMOVING AND INSTALLING .

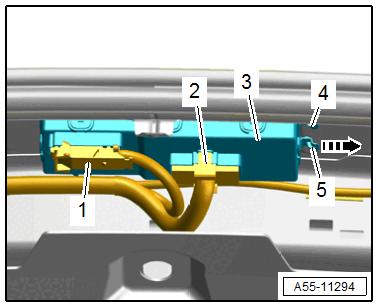

-- Disconnect the connectors -1 and 2-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the catches -4 and 5- and at the same time push the control module -3- to the right side in direction of -arrow-.

• Doing so disengages the brackets from the guides.

-- Remove the Rear Lid Control Module -J605-.
