Fuel Filler Door Unit Drain Hose, Removing And Installing: Installing

Install in reverse order of removal and note the following:

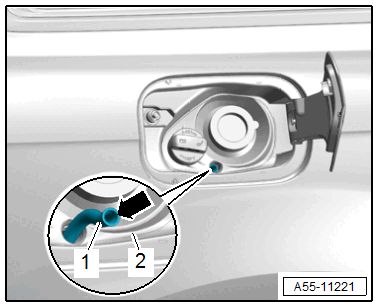

-- Insert the drain hose -1- from above into the fuel filler door cup -2-.

Courtesy of AUDI OF AMERICA, LLC

• The collar -arrow- on the drain hose must be on top.

-- Insert the drain hose into the mount.
