Side Adjustment at Striker

Courtesy of AUDI OF AMERICA, LLC

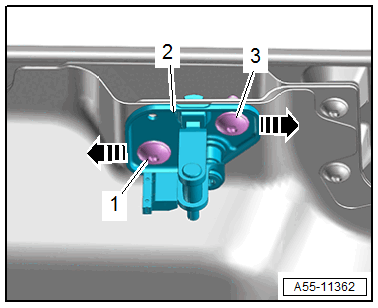

-- Loosen the bolts -1 and 3-.

-- Move the striker -2- in direction of -arrows-.

• During the closing test, the convertible top compartment cover must fall into the latch and engage completely.

-- Tighten the bolts.

Tightening Specifications

• Refer to OVERVIEW - CONVERTIBLE TOP COMPARTMENT COVER
