Convertible Top Compartment Seal, Removing And Installing: Removing

-- Bring the convertible top into its service position. Refer to Position : .

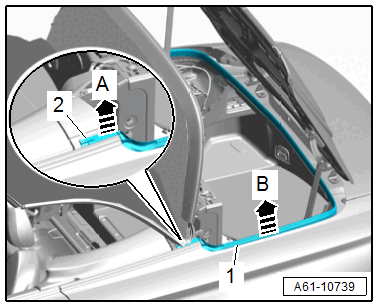

-- Remove the convertible top compartment seal -2- from the body seam near the window shaft strip in direction of -arrow A-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the convertible top compartment seal -1- from the convertible top compartment in direction of -arrow B-.
