Convertible Top Compartment Cover Hinge, Removing And Installing: Removing

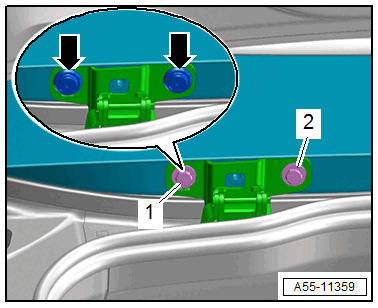

-- Open the rear lid and remove the cap -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Mark the bolts for reinstallation.

-- Remove the bolts -1 and 2-.

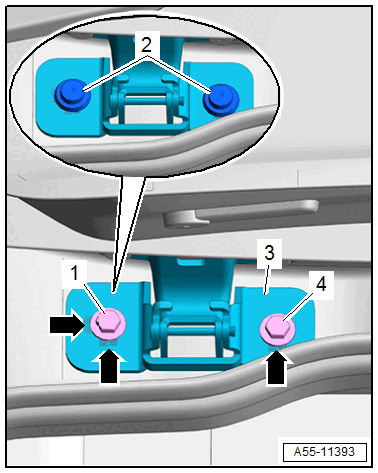

-- Remove the cap -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Mark the bolts for reinstallation.

-- Remove the bolts -1 and 4-.

-- Remove the hinge -3-.
