Overview - Front Door Trim Panel

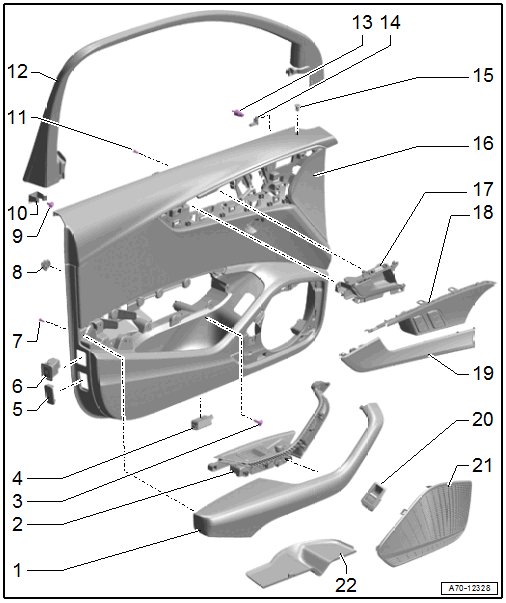

Fig 1: Exploded View Of Front Door Trim Panel

Pull Handle with Armrest
- Equipped on some models:
  - Driver Door Storage Compartment Illumination Bulb -L160-
  - Front Passenger Door Storage Compartment Illumination Bulb -L161-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - FRONT DOOR LAMPS .
- Removing and Installing. Refer to FRONT PULL HANDLE, REMOVING AND INSTALLING .
Switch Mount
- Removing and installing. Refer to FRONT PULL HANDLE, REMOVING AND INSTALLING .
Bolt
- 2.5 Nm
- For door trim panel
- Quantity: 3
Entry Lamp
- Driver Side Entry Lamp -W92-
- Passenger Side Entry Lamp -W93-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - FRONT DOOR LAMPS .
Rear Reflector
- Equipped on some models:
  - Driver Exit Warning Lamp -W111-
  - Front Passenger Exit Warning Lamp -W112-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - FRONT DOOR LAMPS .
Interior Monitoring and Vehicle Inclination Deactivation Button -E616-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - FRONT DOOR LAMPS .
Bolt
- 1.2 Nm
- For the armrest
- Quantity: 15
Clip
- For door trim panel
- Quantity: 8
- Insert in the trim panel
Bolt
- 4 Nm
Clip
- For door trim panel
Bolt
- 1.2 Nm
- For the interior door mechanism
- Quantity: 4
Window Frame Trim Panel
- Removing and installing. Refer to WINDOW FRAME TRIM PANEL, REMOVING AND INSTALLING .
Door Trim Panel Stopper
- 4.5 Nm
Central Locking -Safe- Indicator Lamp -K133-
Sleeve
- For Central Locking -SAFE- Indicator Lamp -K133-
- Driver door only
- When replacing the door trim panel, a hole for the sleeve must be made in the new panel by using the old panel as a model
Door Trim Panel
- Removing and installing. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .
- When replacing the door trim panel, a hole for the sleeve -15- must be made in the new panel using the old panel as a sample.
Interior Door Mechanism
- Removing and installing. Refer to INTERIOR DOOR MECHANISM, REMOVING AND INSTALLING .
Interior Door Mechanism Decorative Trim
- Removing and installing. Refer to INTERIOR DOOR MECHANISM, REMOVING AND INSTALLING .
Decorative Trim
- Removing and installing. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .
Rear Lid Remote Release Button -E233-
COMPONENT LOCATION OVERVIEW - FRONT DOOR LAMPS
- Component Location Overview. Refer to .
Speaker Trim
- For the bass speaker
- Removing and installing. Refer to SPEAKER TRIM IN DOOR TRIM PANELS, REMOVING AND INSTALLING .
- Engage in the door trim panel and press on it until it engages audibly
Door Pocket Trim
- Insert into the door
