Interior Door Mechanism, Removing And Installing: Removing

-- Remove the door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

-- Place the door trim panel on a soft surface.

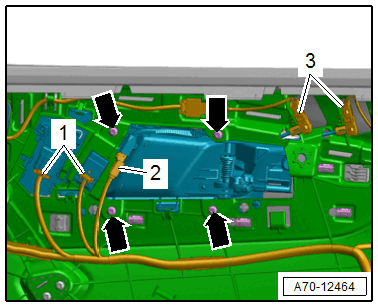

-- Equipped on some models: remove the door ambient lighting lamps -3- on the back of the door trim panel by releasing the retainers and removing the lamp from the fiber-optic cable.

-- Disconnect the connectors -1- .

-- Remove the interior door handle illumination bulb socket -2- from the fiber-optic cable.

-- Remove the bolts -arrows- .

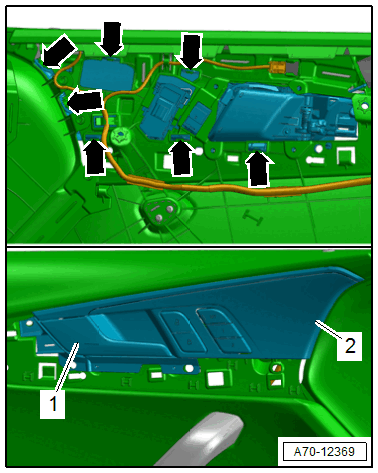

-- Detach the trim -2- with the interior door mechanism -1- from the door trim panel, by releasing the retainers -arrows- on the back of the door trim panel.

-- Disengage the trim with the interior door mechanism from the door trim panel and remove it.
