UNCLIP The Remaining Clips Along The Door Trim Panel From The Door. The Mark Shows The Position Of The Clips.

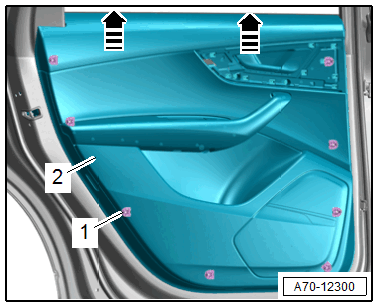

Fig 1: Pull The Door Trim Panel -2- Slightly Off The Door All The Way Around

-- Pull the door trim panel -2- slightly off the door all the way around.

-- Disengage and remove the upper door trim panel on the window recess from the door in direction of -arrows- .

-- Vehicles equipped with a speaker: disconnect the connector for the speaker.

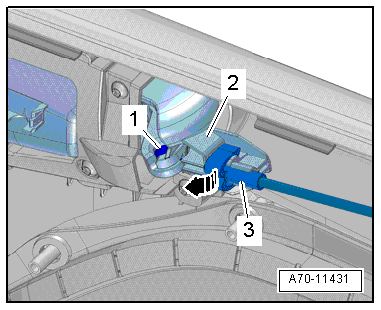

-- Unclip the release cable -3- carefully from the interior door mechanism -2- .

Fig 2: Swivel Interior Door Mechanism Cable Toward Inside

-- Tilt the interior door mechanism release cable -arrow- .

-- Disengage the ends of the cable -1- from the interior door mechanism.

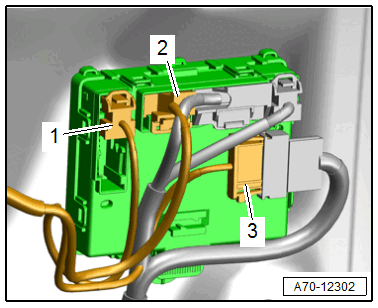

-- Disconnect the connectors -1, 2 and 3- from the door control module by pressing the release.

-- Remove the door trim panel.
