Instrument Panel Side Cover, Removing And Installing: Removing

-- Pry off the instrument panel side cover -1- using the :3409  in direction of -arrow- .

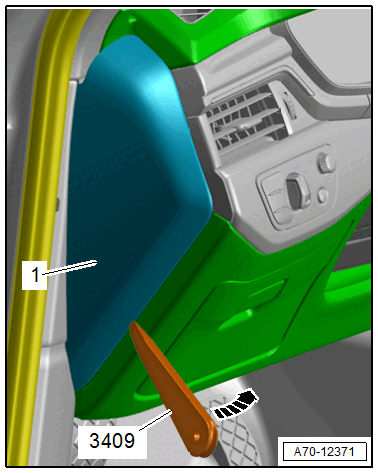

Fig 1: Instrument Panel Side Cover
GWWA70-12371

-- Release the remaining retainers, pull the instrument panel cover out of the A-pillar gap cover and remove it.
