MMI Screen Cover, Removing And Installing: Removing

-- Unclip the MMI screen cover -1- using the :80-200  in direction of -arrow- by positioning the :80-200  carefully on the cover.

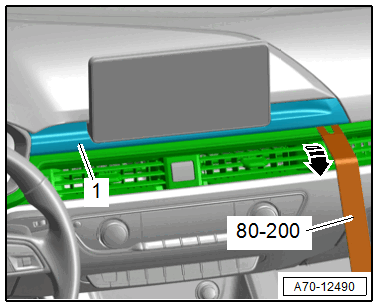

Fig 1: MMI Screen Cover
GWWA70-12490

-- Release the remaining retainers for the MMI screen cover and remove the cover.
