Instrument Cluster Trim, Removing And Installing: Removing

-- Move the steering wheel as far to the rear and down as possible. Use the full steering column adjustment range for this.

-- Remove the driver side outer instrument panel vent. Refer to OUTER INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .

-- Remove the center vent / outer front passenger side instrument panel vent. Refer to CENTER VENT, REMOVING AND INSTALLING .

-- Remove the bolt -2- .

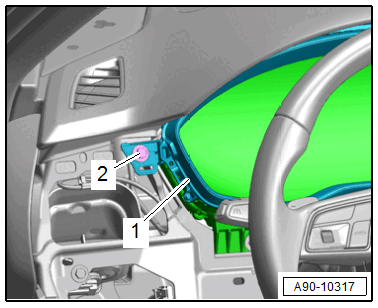

Fig 1: Instrument Cluster Trim

-- Remove the screw on the opposite side.

-- Remove the instrument cluster trim -1- .
