Overview - C-Pillar Trim Panel

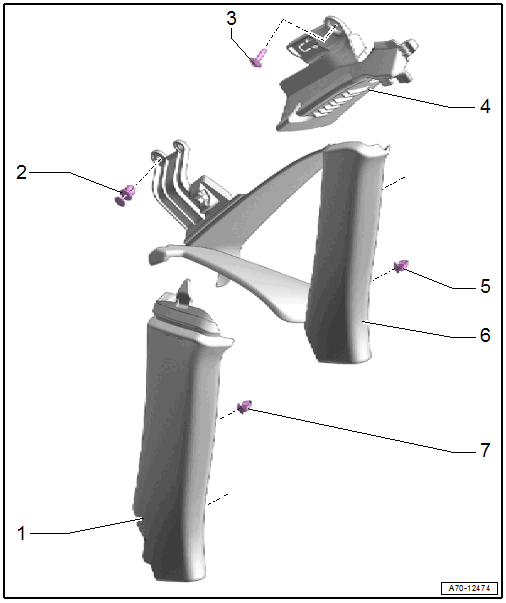

Fig 1: Overview C-Pillar Trim Panel

C-Pillar Trim Panel, Avant
- Removing and installing. Refer to C-PILLAR TRIM PANEL, REMOVING AND INSTALLING, AVANT .
- Insert in the mounting points on the roof at the top
- Press on until it engages audibly
- Stretch the door seal lip over
Expanding Clip
- Remove using the Pliers:T40172C
Bolt
- 5 Nm
Head Curtain Airbag Guide, Sedan
- Insert in the mounting points on the roof
Clip
- Replace damaged or deformed clips
- Remove any remaining clips in the body mounting points using the Omega Clip Tool:T40280 . To install, insert into the trim panel.
- Quantity: 2
- Insert in the trim panel
C-Pillar Trim Panel, Sedan
- Removing and installing. Refer to C-PILLAR-TRIM PANEL, REMOVING AND INSTALLING, SEDAN .
- Press on until it engages audibly
- Stretch the door seal lip over
Clip
- Replace damaged or deformed clips
- Remove any remaining clips in the body mounting points using the Omega Clip Tool:T40280 . To install, insert into the trim panel.
- Insert in the trim panel
- Quantity: 2
