B-Pillar Lower Trim Panel, Removing And Installing: Removing

-- Remove the B-pillar upper trim panel. Refer to B-PILLAR UPPER TRIM PANEL, REMOVING AND INSTALLING .

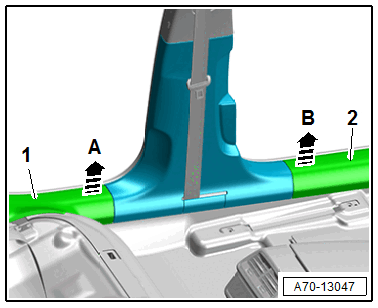

-- Unclip the sill panels -1 and 2- from the B-pillar lower trim panel in direction of -A and B arrows- .

-- Free up the B-pillar lower trim panel -1- near the door seals and disengage it sideways from the B-pillar.

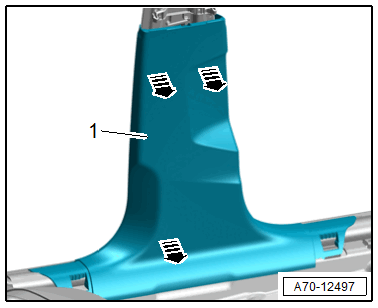

-- Starting at the top, unclip the B-pillar trim panel from the B-pillar using the :80-200  in direction of -arrows- .
