Rear Lid Lower Trim Panel, Removing And Installing, Sedan: Removing

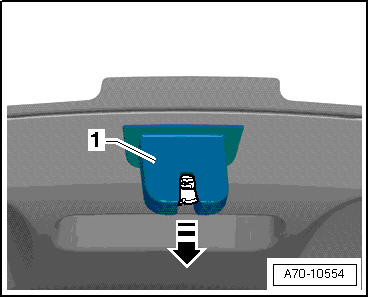

-- Unclip the rear lid latch trim panel -1- using the :T40233 in the direction of the -arrow- .
-- Remove the emergency triangle from the bracket by pressing the release.

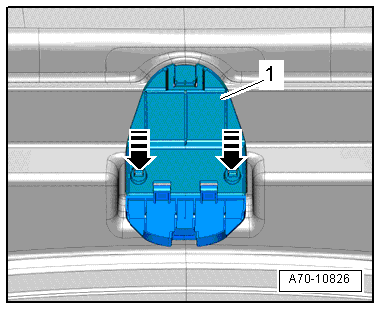

-- Release the retaining tabs using a screwdriver in direction of -arrows- and remove the emergency triangle bracket -1- .

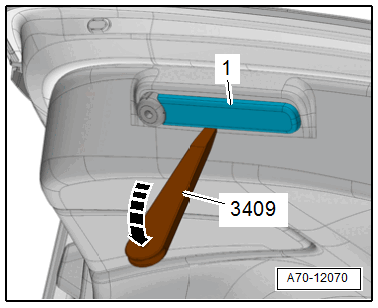

-- Unclip the stop strip -1- using the :3409 in direction of -arrow- .
-- Repeat the procedure on the opposite side.

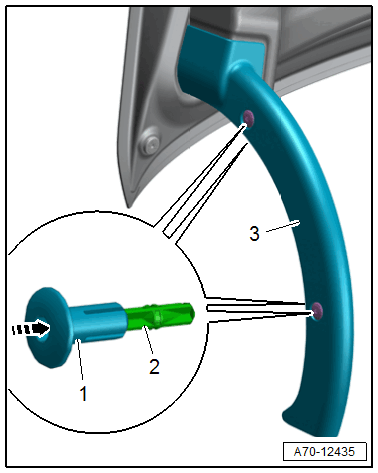

-- To remove the expanding clips -1- , push the clamping pin -2- in carefully approximately 5 mm until it engages audibly in the expanding clip -arrow- (do not push in completely, otherwise the clamping pin will be lost).
-- Remove the released expanding clips with a clamping pin.
-- Pull the rear lid hinge trim panel -3- downward out of the rear lid trim panel and remove it.
-- Repeat the procedure on the opposite side.

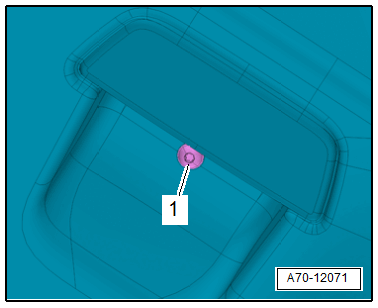

-- Remove the bolt -1- .

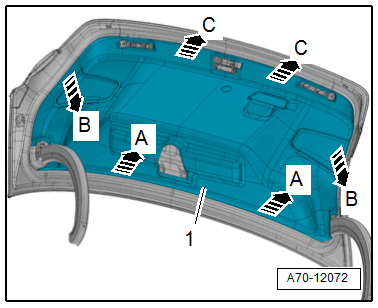

-- Unclip the rear lid trim panel -1- starting at the top of the rear lid in direction of -A arrows- using the :80-200 .
-- Unclip the side of the rear lid trim panel from the rear lid in direction of -B arrows- .
-- Unclip the lower rear lid trim panel from the rear lid in direction of -C arrows- and remove.
