Luggage Compartment Floor, Removing And Installing, All Excluding G-Tron: Removing

-- Unclip the luggage compartment floor -1- from the front brackets -arrows- and remove.

Fig 1: Removing Luggage Compartment Liner

-- Equipped on some models: remove the rail. Refer to RAIL, REMOVING AND INSTALLING .

-- Remove the luggage compartment floor support. Refer to LUGGAGE COMPARTMENT SUPPORT, REMOVING AND INSTALLING .

-- Equipped on some models: remove the vehicle jack and remove the nut -arrow- for the retaining strap -1- .

Fig 2: Tightening Specification - Vehicle Jack Retaining Strap

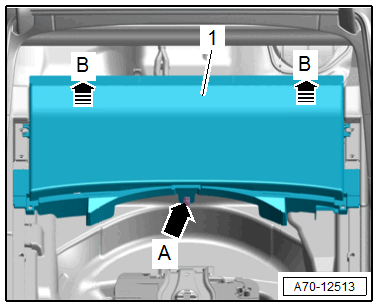

-- Remove the expanding clip -arrow A- using the :T40172C  .

-- Unclip the front of the luggage compartment floor -1- upward in direction of -B arrows- and remove it.
