Luggage Compartment Floor, Removing And Installing, G-Tron: Removing

-- Unclip the rear luggage compartment floor -1- at the corners using the :80-200  in direction of -arrows- .

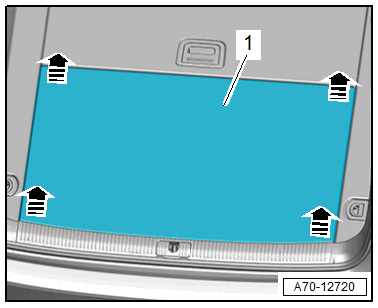

Fig 1: Rear Luggage Compartment Floor

-- Remove the rear luggage compartment floor.

-- Fold up the vehicle tool kit mount cover.

Fig 2: Tightening Specification - Vehicle Jack Retaining Strap

-- If installed, remove the vehicle jack and remove the nut -arrow- for the retaining strap -1- .

-- Fold the rear seat backrests forward.

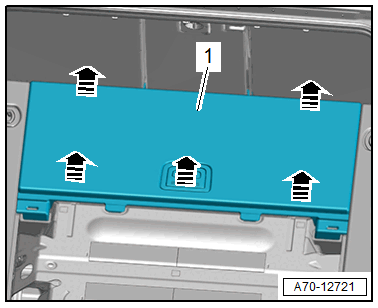

Fig 3: Front Luggage Compartment Floor

-- Unclip the front luggage compartment floor -1- using the :80-200  in direction of -arrows- .

-- Remove the front luggage compartment floor with the vehicle tool kit.
