Rear Luggage Compartment Floor Handle, Removing And Installing: Installing

Install in reverse order of removal and Note The Following  :

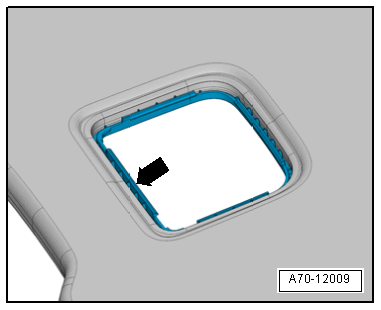

-- Position the frame -arrow- from below in the cut-out in the luggage compartment floor and hold.

Fig 1: Positioning Mounting Bracket

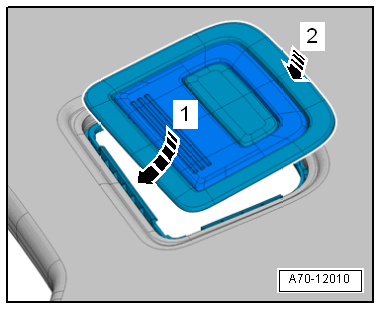

-- Push the luggage compartment floor panel handle opposite the direction of travel in the frame in direction of -arrow 1- and lock downward in direction of -arrow 2- .

Fig 2: Installing Luggage Compartment Handle
