Cover And Cushion, Separating, Outer Folding Backrest: Removing

-- Remove the rear seat backrest. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING, OUTER FOLDING BACKREST .

-- Remove the backrest cover and cushion. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, FOLDING BACKREST .

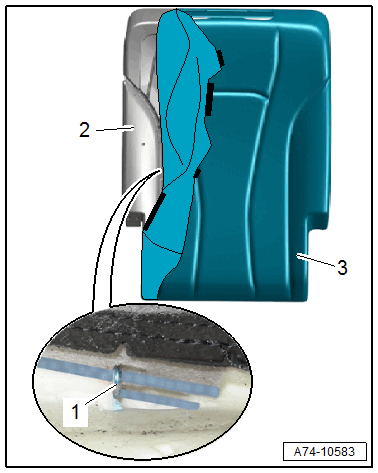

-- Pull off the cover -3- from the cushion -2- as far as possible and cut upholstery clips -1- using pliers.

GWWA74-10583Courtesy of AUDI OF AMERICA, LLC
