Overview - Convertible Top Seals

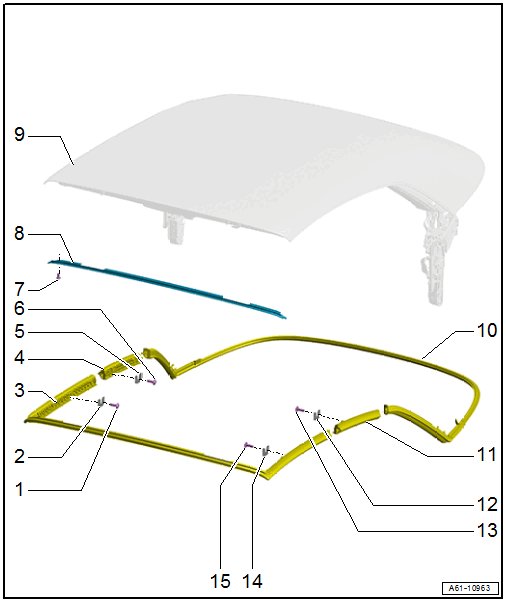

Fig 1: Exploded View Of Convertible Top Seals

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 5 Nm
- Replace after removing.
- Quantity: 2
Spacer Plate
- Different thicknesses
Convertible Top Seal
- Front
- Replace the Butyl after removal. Refer to Installing - Replace .
- Removing and Installing. Refer to FRONT CONVERTIBLE TOP SEAL, REMOVING AND INSTALLING .
Convertible Top Seal
- Center
- Right
- Removing and Installing. Refer to CENTER CONVERTIBLE TOP SEAL, REMOVING AND INSTALLING .
Spacer Plate
- Different thicknesses
Bolt
- 5 Nm
- Replace after removing.
- Quantity: 2
Bolt
- 5 Nm
- Replace after removing.
- Quantity: 7
Retaining Strip
- For the front seal
- Removing and Installing. Refer to FRONT CONVERTIBLE TOP SEAL, REMOVING AND INSTALLING .
Convertible Top
Convertible Top Seal
- Rear
- Removing and Installing. Refer to REAR CONVERTIBLE TOP SEAL, REMOVING AND INSTALLING .
Convertible Top Seal
- Center
- Left
- Removing and Installing. Refer to CENTER CONVERTIBLE TOP SEAL, REMOVING AND INSTALLING .
Spacer Plate
- Different thicknesses
Bolt
- 5 Nm
- Replace after removing.
- Quantity: 2
Spacer Plate
- Different thicknesses
Bolt
- 5 Nm
- Replace after removing.
- Quantity: 2
