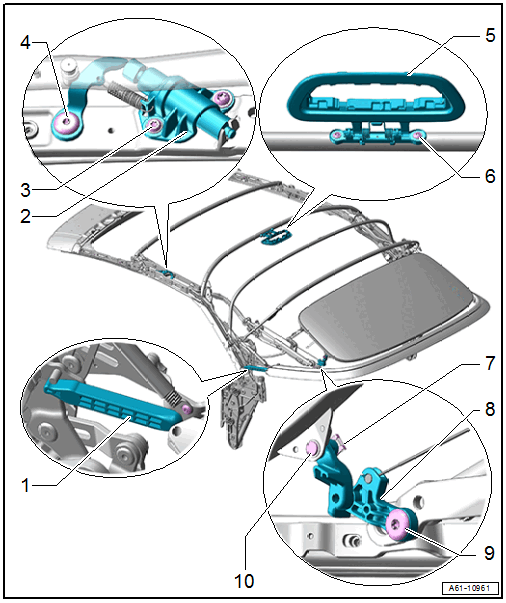

Overview - Convertible Top Frame Attachments
- Connecting Rod
- Removing and Installing. Refer to CONNECTING ROD, REMOVING AND INSTALLING .
- Shock Absorber
- Removing and Installing. Refer to SHOCK ABSORBER, REMOVING AND INSTALLING .
- Bolt
- 5 Nm
- Replace after removing.
- Quantity: 2
- Bolt
- 8 Nm
- Mount
- For the interior lamp
- Removing and Installing. Refer to REAR INTERIOR LAMP MOUNT, REMOVING AND INSTALLING .
- Bolt
- 2 Nm
- Quantity: 2
- Clip
- Rear Window Relay Lever
- Removing and Installing. Refer to REAR WINDOW RELAY LEVER, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- Pin
