Component Location Overview - Hydraulic System

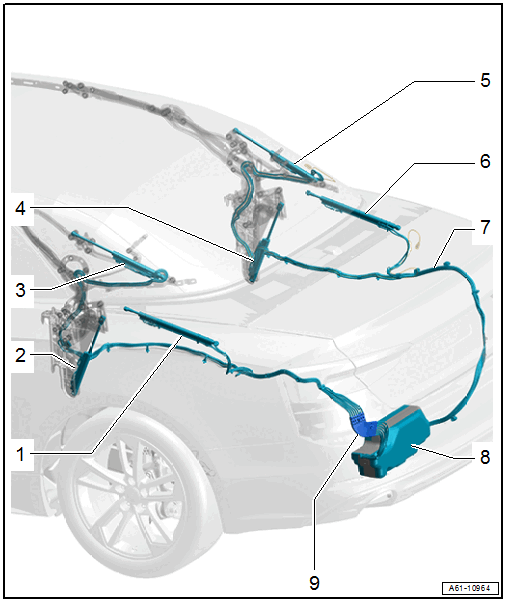

Fig 1: Hydraulic System Overview
GWWA61-10964Courtesy of AUDI OF AMERICA, LLC
  1. Hydraulic Cylinder for Convertible Top Compartment Cover
  2. Convertible Top Drive Hydraulic Cylinder
  3. Tensioning Bracket Hydraulic Cylinder
  4. Convertible Top Drive Hydraulic Cylinder
  5. Tensioning Bracket Hydraulic Cylinder
  6. Hydraulic Cylinder for Convertible Top Compartment Cover
  7. Hydraulic Lines
  8. Hydraulic Pump
  9. Mount
