Hydraulic Pump Motor, Removing And Installing: Installing

Install in reverse order of removal and note the following:

-- Slide a new seal -2- onto the motor.

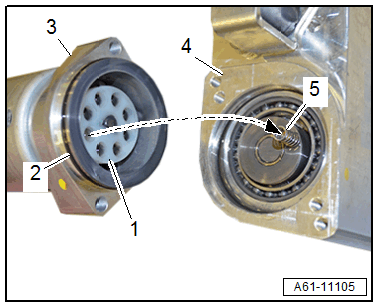

Fig 1: Installing Motor On Valve Block Using Slight Tilting Movements

Courtesy of AUDI OF AMERICA, LLC

-- Place the motor -3- on the valve block -4-.

• The shaft -5- must engage in the recess in the driver -1-.

-- Install the motor on the valve block using slight tilting movements.

-- Check the fluid level and fill with hydraulic fluid if necessary. Refer to HYDRAULIC SYSTEM, FILLING AND BLEEDING .
