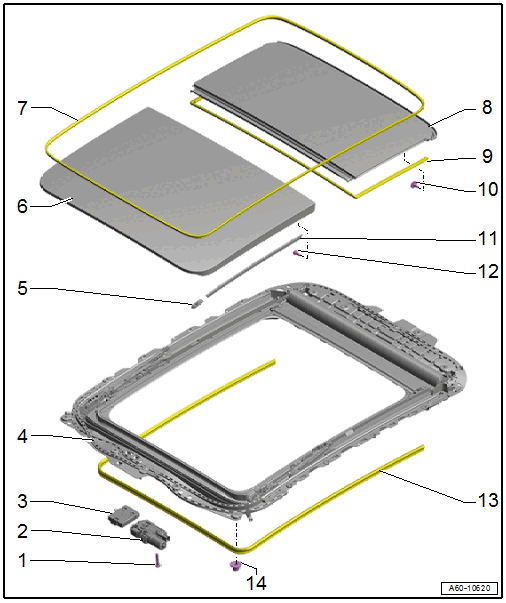

Overview - Sliding Sunroof, A4 Market Versions
- Bolt
- 3 Nm
- Quantity: 2
- Sunroof Motor -V1-
- Removing and Installing. Refer to Sunroof Motor -V1-, REMOVING AND INSTALLING, A4 .
- Perform the adaptation after installing. Refer to Sunroof Motor -V1-, PROGRAMMING .
- Sunroof Control Module -J245-
- Removing and Installing. Refer to Sunroof Control Module -J245-, REMOVING AND INSTALLING, A4 .
- Sunroof Frame
- Removing and Installing. Refer to SUNROOF FRAME, REMOVING AND INSTALLING, A4 MARKET-SPECIFIC .
- Perform the adaptation after installing. Refer to Sunroof Motor -V1-, PROGRAMMING .
- Gliding Piece
- Removing and Installing. Refer to GLIDING PIECE, REMOVING AND INSTALLING .
- Perform the adaptation after installing. Refer to Sunroof Motor -V1-, PROGRAMMING .
- Glass Panel
- Front
- Removing and Installing. Refer to GLASS PANEL, REMOVING AND INSTALLING, FRONT, A4 AVANT AND MARKET-SPECIFIC VERSION .
- Adjusting. Refer to GLASS PANEL, ADJUSTING, A4 AVANT AND MARKET-SPECIFIC VERSION .
- Perform the adaptation after installing. Refer to Sunroof Motor -V1-, PROGRAMMING .
- Emergency Opening. Refer to EMERGENCY OPENING .
- Roof Opening Seal
- Replace after removing.
- Removing and Installing. Refer to Roof Opening Seal, Removing and Installing: .
- Perform the adaptation after installing. Refer to Sunroof Motor -V1-, PROGRAMMING .
- Glass Panel
- Rear
- Removing and Installing. Refer to GLASS PANEL, REMOVING AND INSTALLING, REAR, A4 AVANT AND MARKET-SPECIFIC VERSION .
- Adjusting. Refer to GLASS PANEL, ADJUSTING, A4 AVANT AND MARKET-SPECIFIC VERSION .
- Perform the adaptation after installing. Refer to Sunroof Motor -V1-, PROGRAMMING .
- Seal
- For the rear glass panel
- Removing and Installing. Refer to Seal for Rear Glass Panel, Removing and Installing: .
- Perform the adaptation after installing. Refer to Sunroof Motor -V1-, PROGRAMMING .
- Bolt
- 7 Nm
- Replace after removing.
- Self-locking
- Quantity: 4
- Rubber Trim
- On the front glass panel
- Removing and Installing. Refer to RUBBER TRIM, REMOVING AND INSTALLING, A4 AVANT AND MARKET-SPECIFIC VERSION .
- Bolt
- 7 Nm
- Replace after removing.
- Self-locking
- Quantity: 8
- Seal
- Inner
- Attached from the inside onto the sunroof frame
- Nut
- 8 Nm
- Tightening sequence. Refer to Installing .
- Quantity: 18
