Overview - Sunroof Shade, A4 Market-Specific Version

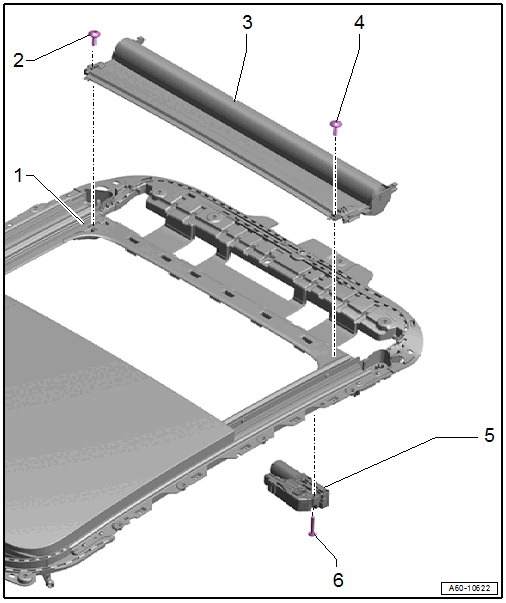

Fig 1: Exploded View Of Sunroof Shade, A4 Market-Specific Version

Courtesy of AUDI OF AMERICA, LLC

1. Sunroof Frame
2. Bolt
   • 2.5 Nm
   • Thread cutting
   • Position and install by hand
   • Quantity: 2
3. Sunroof Shade
   • Removing and Installing. Refer to SUNROOF SHADE, REMOVING AND INSTALLING, A4 MARKET-SPECIFIC VERSION .
   • Perform the adaptation after installing. Refer to Sunroof Shade Motor -V260-, ADAPTING .
4. Bolt
   • 2.5 Nm
   • Thread cutting
   • Position and install by hand
   • Quantity: 2
5. Sunroof Shade Motor -V260-
   • Removing and Installing. Refer to Sunroof Shade Motor -V260-, REMOVING AND INSTALLING, A4 MARKET-SPECIFIC VERSION .
   • Perform the adaptation after installing. Refer to Sunroof Shade Motor -V260-, ADAPTING .
6. Bolt
   • 3 Nm
   • Quantity: 2
