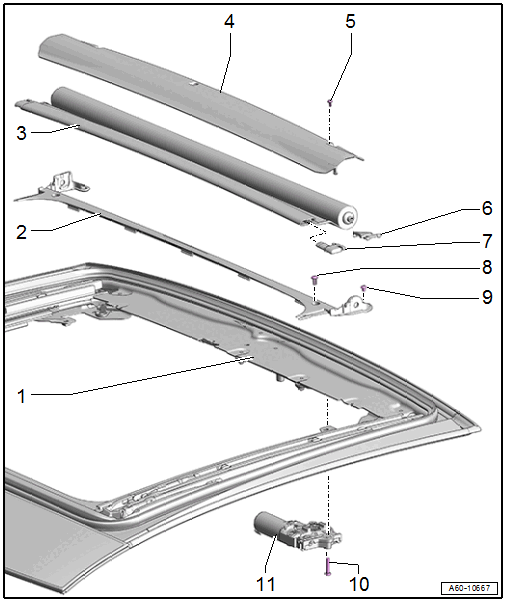

Overview - Sunroof Shade, A5 Coupe
- Sunroof Frame
- Bracket
- For sunroof shade
- Sunroof Shade
- Removing and Installing. Refer to SUNROOF SHADE, REMOVING AND INSTALLING, A5 .
- Perform the adaptation after installing. Refer to Sunroof Shade Motor -V260-, ADAPTING .
- Cover
- For sunroof shade
- Removing and Installing. Refer to SUNROOF SHADE, REMOVING AND INSTALLING, A5 .
- Bolt
- 3 Nm
- Thread cutting
- Position and install by hand
- Quantity: 3
- Guide
- For sunroof shade
- Gliding Piece
- For sunroof shade
- Bolt
- 3 Nm
- Quantity: 2
- Bolt
- 3 Nm
- Quantity: 2
- Bolt
- 3 Nm
- Quantity: 3
- Sunroof Shade Motor -V260-
- Removing and Installing. Refer to Sunroof Shade Motor -V260-, REMOVING AND INSTALLING, A5 .
- Perform the adaptation after installing. Refer to Sunroof Shade Motor -V260-, ADAPTING .
