Overview - Wind Deflector, A4 AVANT

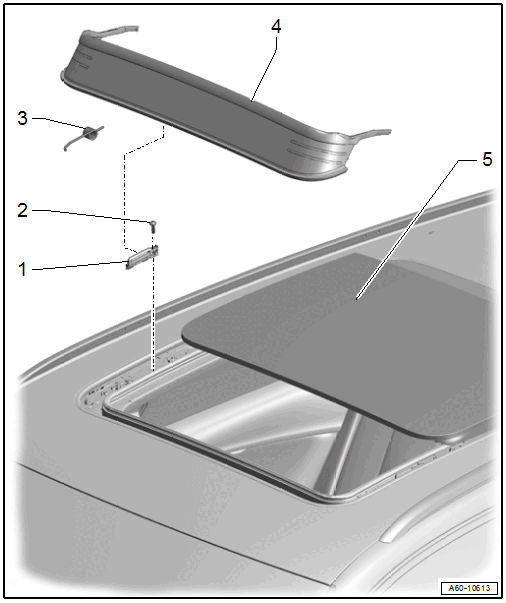

Fig 1: Exploded View Of Wind Deflector, A4 Avant

Courtesy of AUDI OF AMERICA, LLC

Bearing
- For wind deflector
- Removing and Installing. Refer to WIND DEFLECTOR BEARING, REMOVING AND INSTALLING, A4 AVANT .
Bolt
- 1 Nm
- Position and install by hand
- Thread cutting
- Quantity: 2
Spring
- For wind deflector
- Removing and Installing. Refer to WIND DEFLECTOR SPRING, REMOVING AND INSTALLING .
Wind Deflector
- Removing and Installing. Refer to WIND DEFLECTOR, REMOVING AND INSTALLING, A4 AVANT .
- Perform the adaptation after installing. Refer to Sunroof Motor -V1-, PROGRAMMING .
Front Glass Panel
