Overview - Wind Deflector, A4 Market-Specific Version

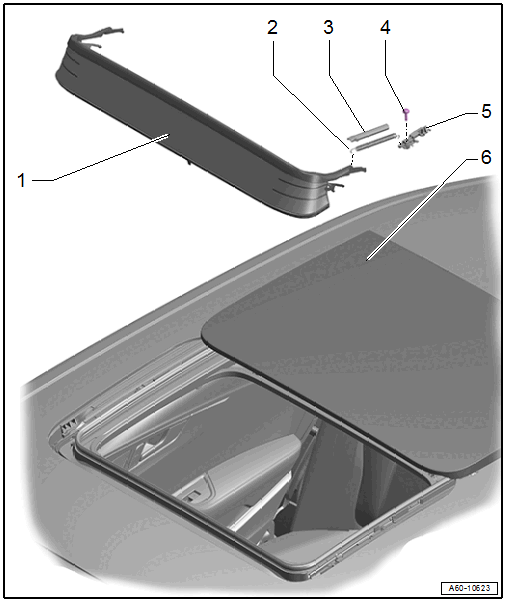

Fig 1: Exploded View Of Wind Deflector, A4 Market-Specific Version

Courtesy of AUDI OF AMERICA, LLC

1. Wind Deflector
   • Removing and Installing. Refer to WIND DEFLECTOR, REMOVING AND INSTALLING, A4 MARKET-SPECIFIC VERSION .
   • Perform the adaptation after installing. Refer to Sunroof Motor -V1-, PROGRAMMING .
2. Spring
   • For wind deflector
   • Removing and Installing. Refer to WIND DEFLECTOR SPRING, REMOVING AND INSTALLING, A4 MARKET-SPECIFIC VERSION .
3. Protective Cover
   • For spring
4. Bolt
   • 1 Nm
   • Position and install by hand
   • Thread cutting
   • Quantity: 2
5. Bearing
   • For wind deflector
   • With front glass panel guide
   • Removing and Installing. Refer to WIND DEFLECTOR BEARING, REMOVING AND INSTALLING, A4 MARKET-SPECIFIC VERSION .
6. Front Glass Panel
