Glass Panel, Removing And Installing, Front, A4 AVANT And Market-Specific Version: Removing
CAUTION:
Moving the slotted guide rail guide increases the risk of damaging the sliding sunroof components.
- Move the slotted guide rail guide only when the glass panel is installed.
-- Open the glass panel far enough until it is lifted at the front and rear.

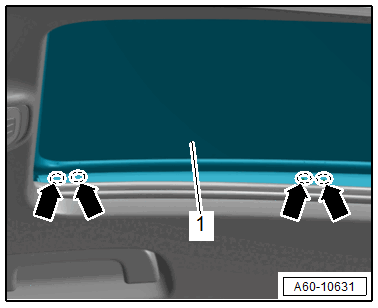

-- Remove the right and left bolts -arrows- through the openings in the side rubber trim on the glass panel.
-- Remove the front glass panel -1-.
