Glass Panel, Adjusting, A4 Sedan

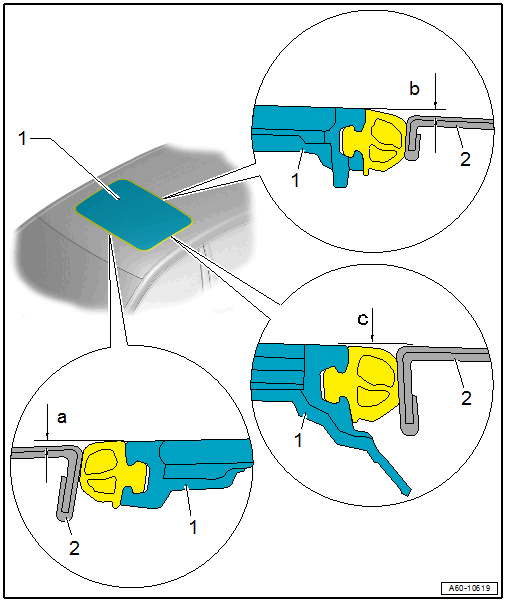

Adjustment Dimensions

Courtesy of AUDI OF AMERICA, LLC

Front Glass Panel

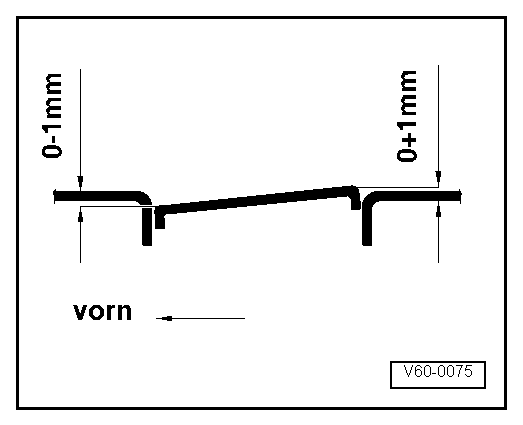

- Dimension -a- = 0 - 1 mm
- Dimension -b- = 0 + 1 mm
- Dimension -c- = 0 mm (flush)
Roof

Height Adjustment

Fig 1: Identifying Sunroof Panel, Adjusting

Courtesy of AUDI OF AMERICA, LLC

To achieve the best possible exterior optical characteristics, make sure that the adjustment on left and right sides is performed as evenly (symmetrically) as possible.

-- Check the glass panel adjustment using a depth gauge, for example.

-- To adjust the height, close the sliding sunroof from the open position (not tilted open).

-- Remove the left and right boot. Refer to BOOT, REMOVING AND INSTALLING .

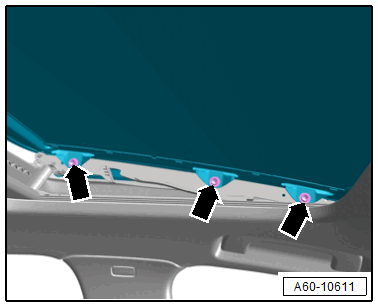

-- Loosen the left and right bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Adjust the glass panel in the front area and tighten the front bolts.

-- Adjust the glass panel in the rear area and tighten the rear bolts.

-- Then tighten the bolts in the center.

-- Perform an adaptation. Refer to Sunroof Motor -V1-, PROGRAMMING .

Tightening Specifications
