Boot, Removing And Installing: Removing

-- Tilt the glass panel open.

-- Slide the sun shade all the way to the rear.

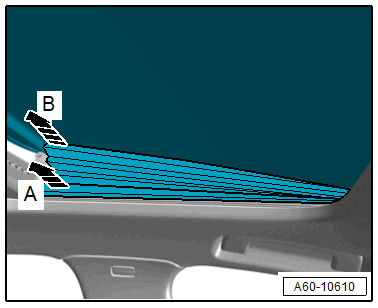

-- First grasp the bottom of the boot at the rear and pull it toward the center of the vehicle in direction of -arrow A-.

GWWA60-10610Courtesy of AUDI OF AMERICA, LLC

-- Then detach the top of the boot from the glass panel in direction of -arrow B-.
