Sliding And Tilting Mechanism Guide, Removing And Installing: Removing

-- Remove the wind deflector. Refer to WIND DEFLECTOR, REMOVING AND INSTALLING, A5 .

-- Loosen the sliding and tilting mechanism bolts, so that the guide can be lifted out for removal. Refer to SLIDING AND TILTING MECHANISM, REMOVING AND INSTALLING . At the same time mark the installation position for reinstallation.

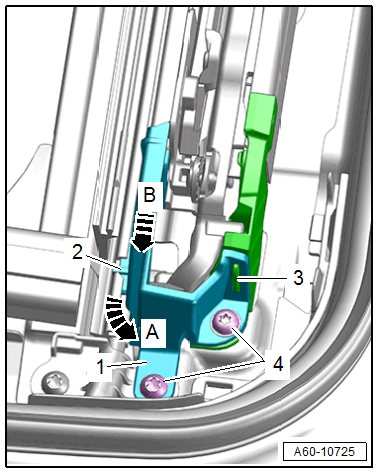

-- Remove the bolts -4-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the catch -3- and pivot the guide -1- to the outside in direction of -arrow A- until the safety catch -2- is free.

-- Remove the guide toward the front in direction of -arrow B-.
