Outer Sunroof Seals, Removing and Installing:: Removing

-- Remove the glass panel. Refer to GLASS PANEL, REMOVING AND INSTALLING, A5 .

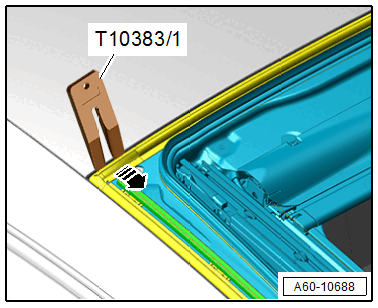

-- Loosen the outer sunroof seal using the :T10383/1  in direction of -arrow-.

GWWA60-10688Courtesy of AUDI OF AMERICA, LLC

-- If necessary, also use the :VAS1978/14A  .
