Wind Deflector, Removing And Installing, A4 AVANT: Removing

-- Move the front glass panel completely toward the rear.

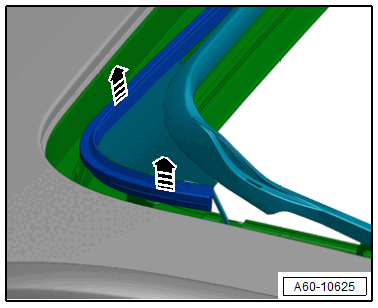

-- Starting at the side, disengage the lower molding on the wind deflector net from the sliding sunroof frame in direction of -arrow-.

Courtesy of AUDI OF AMERICA, LLC

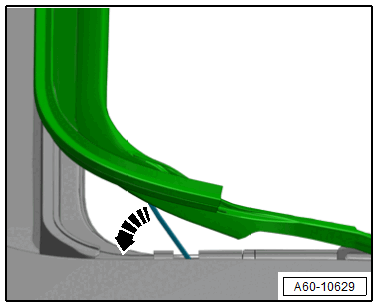

-- Push the wind deflector spring on the left and right sides downward in direction of -arrow- and disengage it from the wind deflector.

Courtesy of AUDI OF AMERICA, LLC

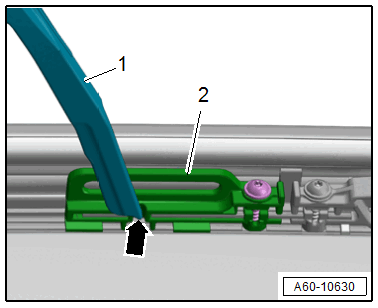

-- Position the wind deflector frame -1- on the left and right sides in the bearing -2- so that it is above the cut-out -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Pivot the frame in this position upward and remove it sideways from the bearing.
