Wind Deflector, Removing And Installing, A4 Market-Specific Version: Installing

Install in reverse order of removal and note the following:

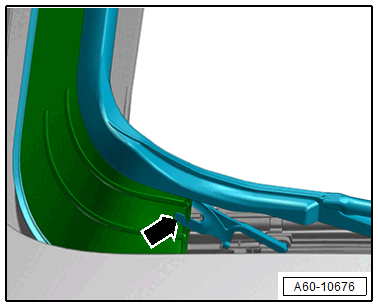

-- Pay attention that the wind deflector net engages in the linkage bracket -arrow-.

GWWA60-10676Courtesy of AUDI OF AMERICA, LLC

-- Perform an adaptation. Refer to Sunroof Motor -V1-, PROGRAMMING .
