Wind Deflector Bearing, Removing And Installing, A4 AVANT: Removing

-- Open the front glass panel.

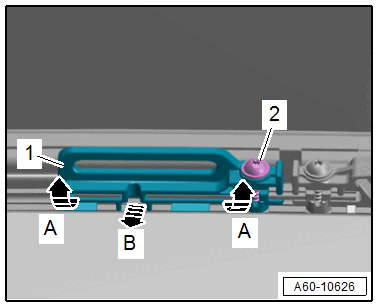

-- Remove the bolt -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Lift the retaining tabs slightly in direction of -A arrows-.

-- Pull the wind deflector bearing -1- to the side and out of the sunroof frame in direction of -arrow B-.

-- Pivot the wind deflector bearing 90° and disengage it from the wind deflector.
