Wind Deflector Bearing, Removing And Installing, A4 Market-Specific Version: Removing

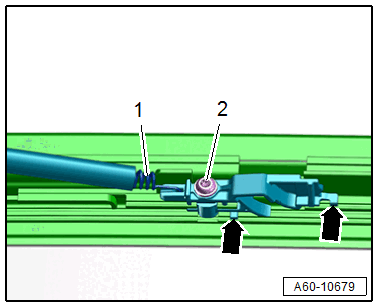

-- Open the front glass panel.
-- Disengage the wind deflector spring -1-.
Courtesy of AUDI OF AMERICA, LLC
|
-- Remove the bolt -2-.
-- Carefully remove the retaining tab -arrows-.
-- Remove the wind deflector bearing with the guide for the front glass panel to the side.
