Height Adjustment, Checking, A5 Cabriolet

Special tools and workshop equipment required

If the door window causes wind noise, the height adjustment must be checked.

-- Determine the measuring point on the door window:

Dimension -a- = 20 mm, measured from the upper impression on the inner door seal -1-. Refer to ADJUSTMENT DIMENSION, A5 CABRIOLET - Dimension -c- = 20 mm, measured from the impression in the door seal .

Courtesy of AUDI OF AMERICA, LLC
Dimension -b- = 20 mm, measured from the lower impression on the inner door seal -1-. Refer to ADJUSTMENT DIMENSION, A5 CABRIOLET - Dimension -d- = 20 mm, measured from the impression in the door seal .
Dimension -c- = 100 mm, measured from the center of the side window seal -2-. Refer to ADJUSTMENT DIMENSION, A5 CABRIOLET - Dimension -j- = 100 mm, measured from the center of the side window seal .

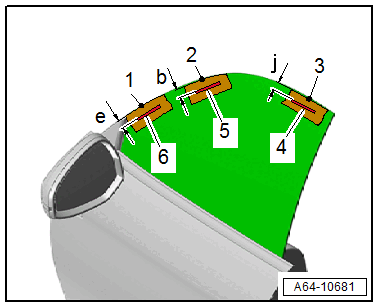

-- Apply the adhesive tape to the measured points -1, 2 and 3-.

Courtesy of AUDI OF AMERICA, LLC

-- On the adhesive tape, mark reference lines -4, 5, and 6- from the door window upper edge.

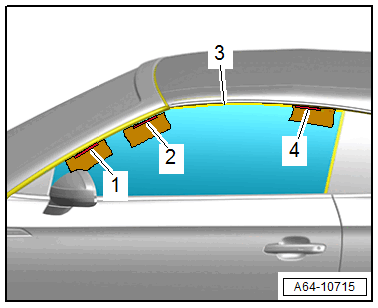

-- Close the door.

The reference lines -1, 2 and 4- on the adhesive tape must align with the inner door seal lower edge -3-.

Courtesy of AUDI OF AMERICA, LLC

TIP:

The measurement of the window depth can be performed using the : T10391 at the measuring points.

-- Adjust the door window again if the first height adjustment is not OK. Refer to HEIGHT ADJUSTMENT .
