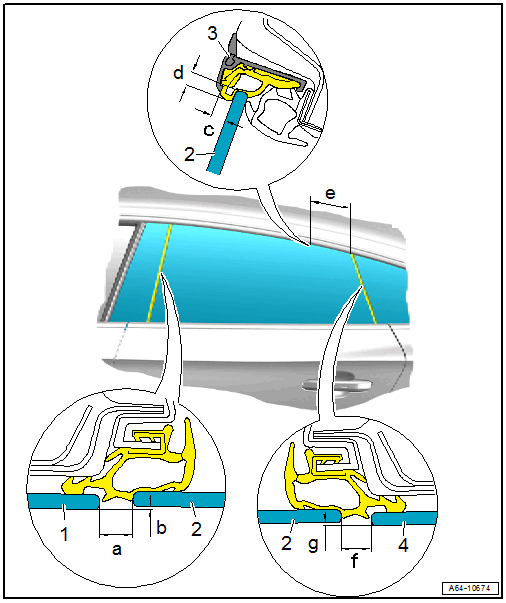

Adjustment Dimensions
Door window to B-pillar trim
- Gap dimension -a- = 9.8 mm
- Flush dimension -b- = ± 1.1 mm
- Parallel dimension = 1.0 mm
-1- B-pillar trim
-2- Door window
Door Window to Back of Roof
- Gap dimension -c- = 5.6 mm
- Gap dimension -d- = 3.0 mm
- Dimension -e- = 294.5 mm measured from the center of the inner door seal
-2- Door window
-3- Roof trim molding
Door Window to Side Window
- Gap dimension -f- = 8.8 mm
- Flush dimension -g- = ± 0.7 mm
- Parallel alignment = 1.1 mm
-2- Door window
-4- Side window
