Special Tools

Special tools and workshop equipment required

Wedge Set: T10383

Fig 1: Identifying Wedge Set
Courtesy of AUDI OF AMERICA, LLC

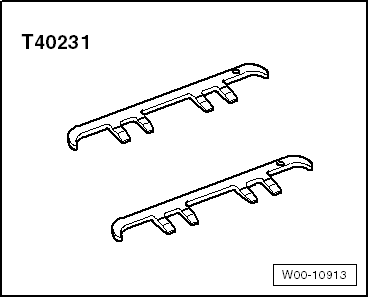

Use the Side Window Removal Tool: T40231 for standard windows.

Fig 2: Identifying Side Window Removal Tool T40231
Courtesy of AUDI OF AMERICA, LLC
Wedge 1: T10383/1
Double Suction Lifter: VAG1344

Fig 3: Double Suction Lifter
Courtesy of AUDI OF AMERICA, LLC
Bonded Window Tool Kit: VAG1351

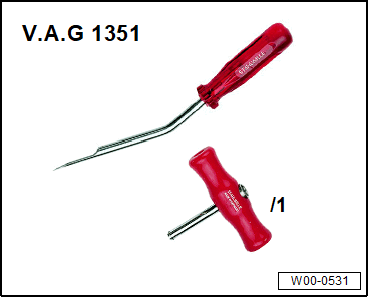

Fig 4: Bonded Window Tool Kit (VAG1351)
Courtesy of AUDI OF AMERICA, LLC
Bonded Window Tool Kit - Pull Handle: VAG1351/1

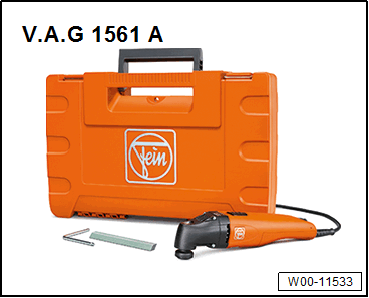

Window Cutter: VAG1561A

Fig 5: Identifying Window Cutter VAG 1561A
Courtesy of AUDI OF AMERICA, LLC

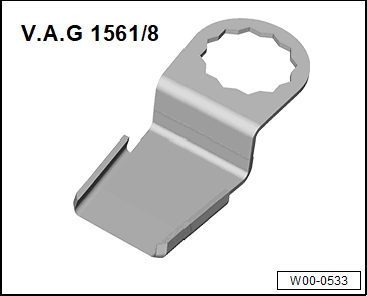

Window Cutter - Scraper (2 pc.): VAG1561/7+8

Fig 6: Identifying Scraper (15+25 mm) V.A.G 1561/7+8
Courtesy of AUDI OF AMERICA, LLC

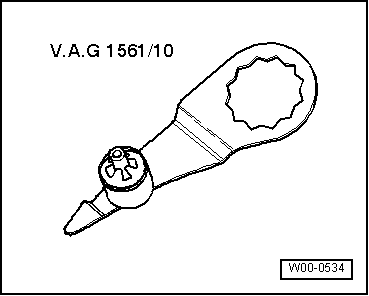

Blade Offset: VAG1561/10

Fig 7: Angled Blade V.A.G 1561/10
Courtesy of AUDI OF AMERICA, LLC

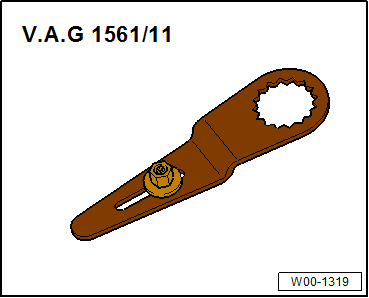

Window Cutter - Universal Blade (2 pc.): VAG1561/11

Fig 8: Identifying Universal Cutting Blade V.A.G 1561/11
Courtesy of AUDI OF AMERICA, LLC
Window Cutter - L Blade (2 pc.): VAG1561/22

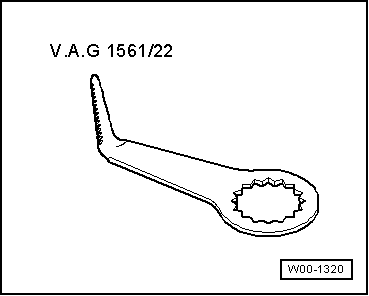

Fig 9: Cutting Blade (L-Shaped, 25.4 mm) V.A.G 1561/22
Courtesy of AUDI OF AMERICA, LLC

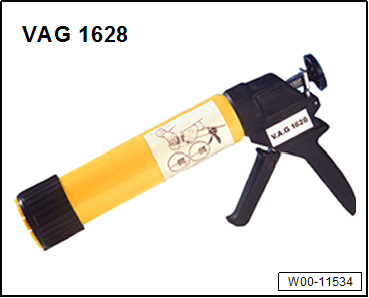

Cartridge Gun: VAG1628

Fig 10: Cartridge Gun (VAG1628)
Courtesy of AUDI OF AMERICA, LLC
Cartridge Heater: VAG1939A

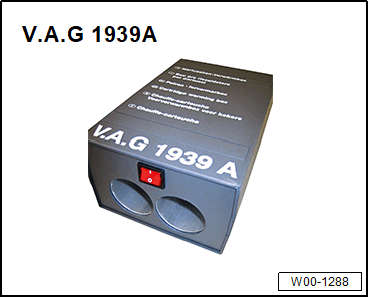

Fig 11: Cartridge Heater
Courtesy of AUDI OF AMERICA, LLC
Window Repair Kit: VAS1993 or Windscreen Repair Set: VAS6092

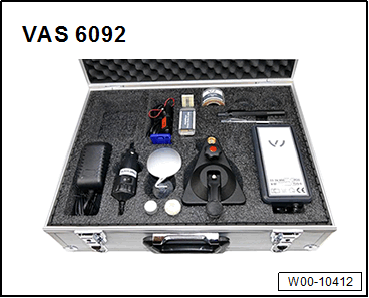

Fig 12: Glass Repair Kit VAS 6092
Courtesy of AUDI OF AMERICA, LLC
Cutting Tool for Bonded Windows: VAS6452

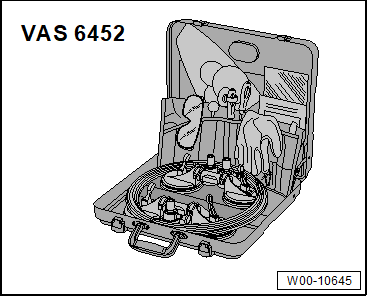

Fig 13: Cutting Tool For Bonded Windows (VAS6452)
Courtesy of AUDI OF AMERICA, LLC

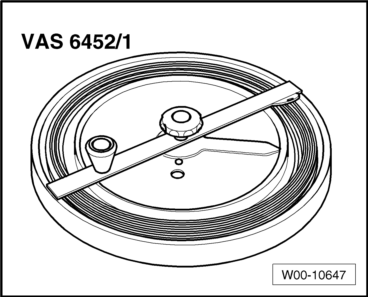

Cutting Tool for Bonded Windows - Wire Reel: VAS6452/1

Fig 14: Cutting Tool For Bonded Windows - Wire Reel (VAS6452/1)
Courtesy of AUDI OF AMERICA, LLC
Cutting Tool for Bonded Windows - Wire: VAS6452/2

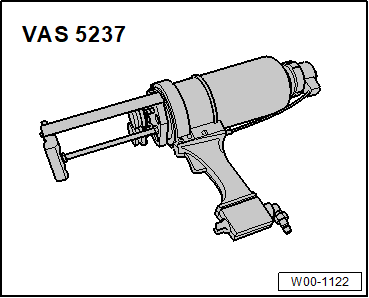

Double Cartridge Adhesive Gun: VAS5237

Fig 15: Double Cartridge Adhesive Gun (VAS5237)
Courtesy of AUDI OF AMERICA, LLC
Not illustrated:
Cutting Tool for Bonded Windows: VAS6452
Cutting Tool for Bonded Windows - Wire Reel: VAS6452/1
