Overview - Vacuum Pump, TDI Engine

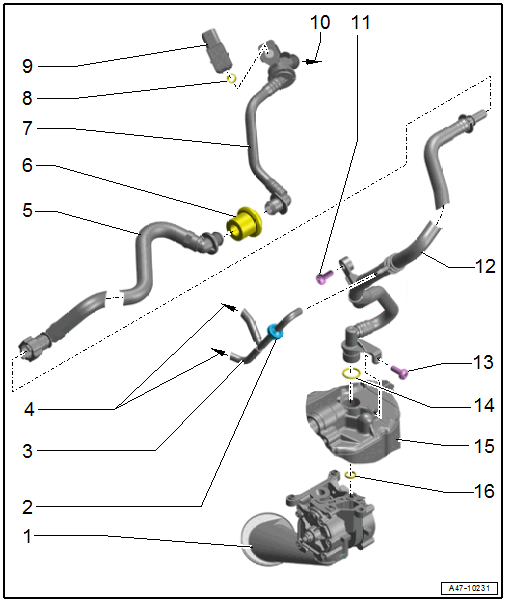

Fig 1: Exploded View Of Vacuum Pump, TDI Engine

Courtesy of AUDI OF AMERICA, LLC

Vacuum Pump
- Integrated in the oil pump
- Removing and installing. Refer to the appropriate service information .
Check Valve
- Cannot be replaced separately
- Checking. Refer to CHECK VALVE, CHECKING
Vacuum Hose
- With integrated check valve
- The check valve cannot be replaced separately
- Checking. Refer to CHECK VALVE, CHECKING
Vacuum Line
Vacuum Hose
Grommet
Vacuum Hose
O-Ring
- Cannot be replaced separately
- Replace the Vacuum Sensor -G608- if damaged
Vacuum Sensor -G608-
- Removing and installing. Refer to Vacuum Sensor -G608-, REMOVING AND INSTALLING
To the Brake Booster
Bolt
- 9 Nm
Vacuum Hose
Bolt
- 9 Nm
O-Ring
Oil Pan Upper Section
O-Ring
- Always replace after removing
