Vacuum Sensor -G608-, Removing And Installing: Removing

-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .

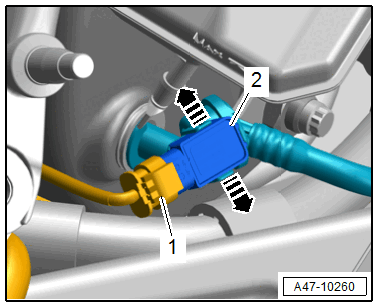

-- Disconnect the connector -1- for the Vacuum Sensor -G608-.

Courtesy of AUDI OF AMERICA, LLC

-- Push the slider on the connector toward the rear to do this.

-- Release the catches in the direction of -arrows- and carefully remove the Vacuum Sensor -G608- -2-.

Courtesy of AUDI OF AMERICA, LLC
